Steel or stainless steel 1.4305.

Steel trivalent blue passivated.
Stainless steel, bright.

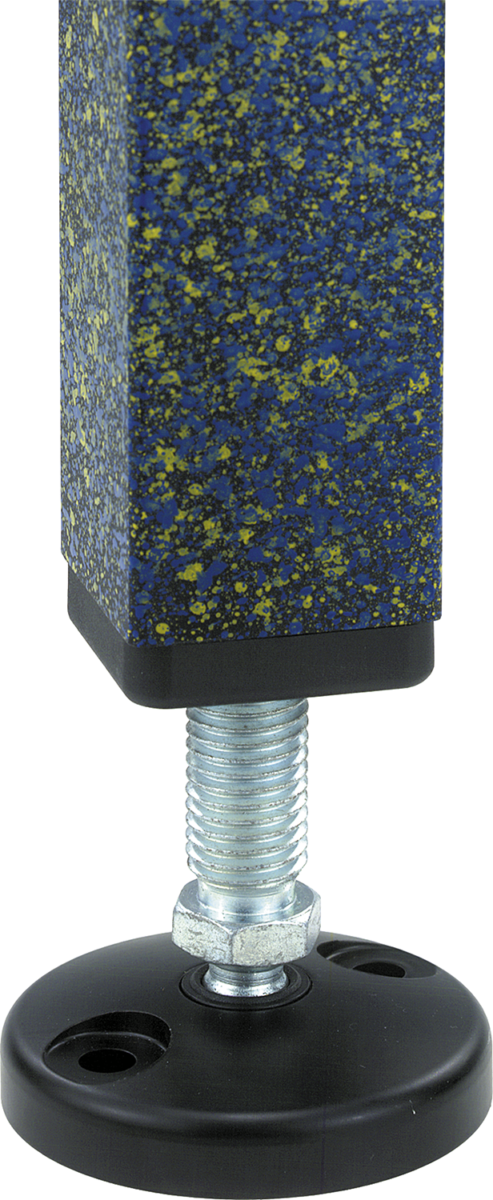

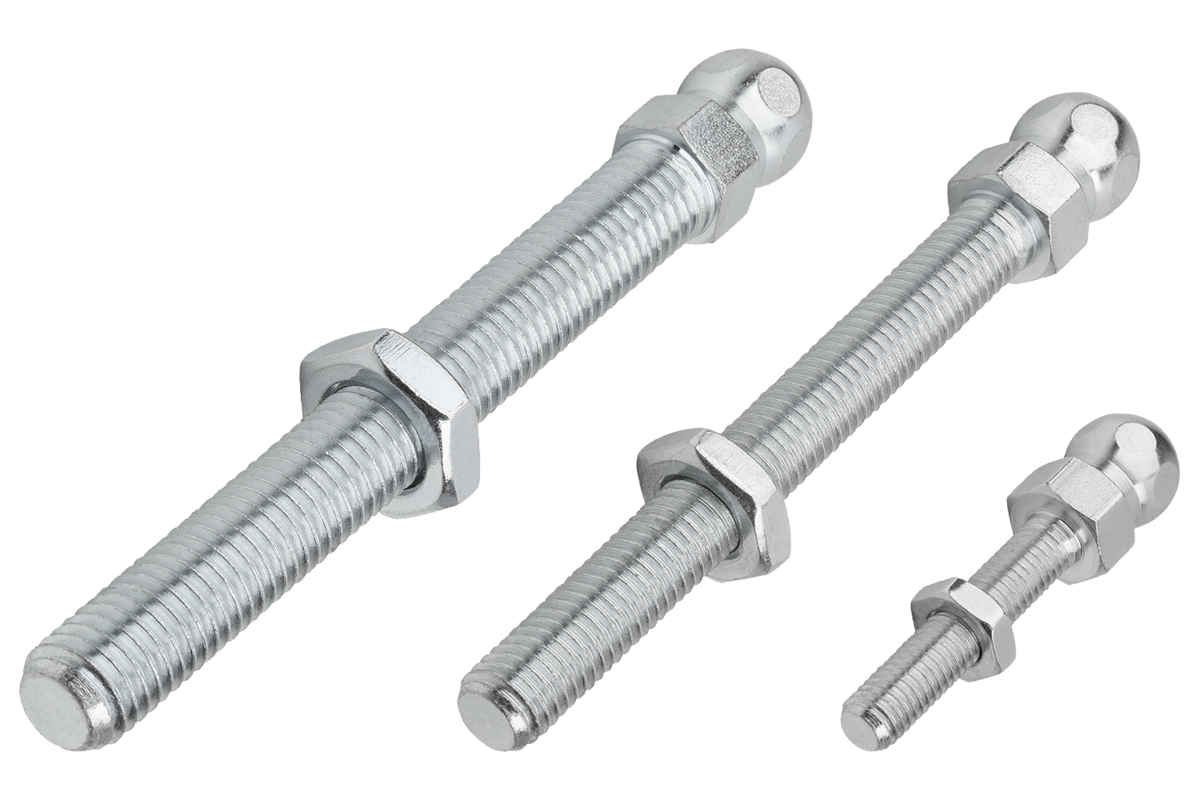

Swivel feet are made up of a threaded spindle and a plate. Each threaded spindle can be combined with one plate. The total height of the swivel foot is calculated from the length of the threaded spindle + height of the hexagon + 22.5 mm.
(Swivel foot total height = L + L1 + 22.5 mm).

Depending on version, the threaded spindle may have a thread undercut in front of the hexagon.

- K0415 Swivel feet plates plastic.
- K0415 Swivel feet plates antistatic.
- K0416 Swivel feet plates die-cast zinc or stainless steel.
- K0654 Swivel feet plates extended plastic.
- K0417 Swivel feet plates extended die-cast zinc.
- K0418 Swivel feet plates stainless steel.
- K0419 Swivel feet plates with vibration absorption.
