Material
Oval tube aluminum.
End piece thermoplastic polyamide.
End cap thermoplastic polyamide.
Adapter bushing stainless steel.
End piece thermoplastic polyamide.
End cap thermoplastic polyamide.
Adapter bushing stainless steel.
Version

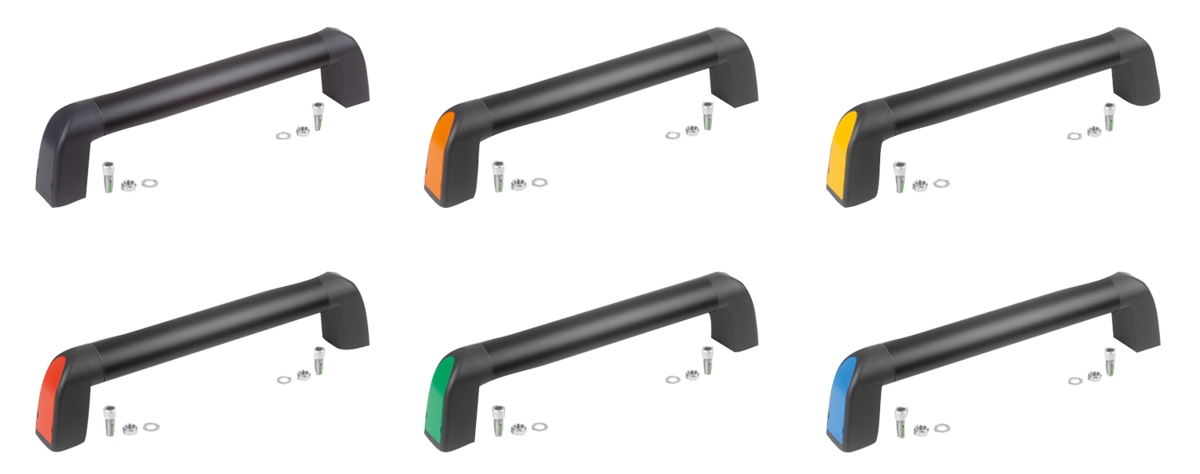

Oval tube black gray powder-coated (glossy), black anodized (matt) or natural tone anodized (matt).
End piece black gray RAL 7021.
End cap black gray RAL7021, pure orange RAL 2004, rape yellow RAL 1021, traffic red RAL 3020, signal green RAL 6032 or traffic blue RAL 5017.
End piece black gray RAL 7021.
End cap black gray RAL7021, pure orange RAL 2004, rape yellow RAL 1021, traffic red RAL 3020, signal green RAL 6032 or traffic blue RAL 5017.
Show more
Show less
Description
Product description

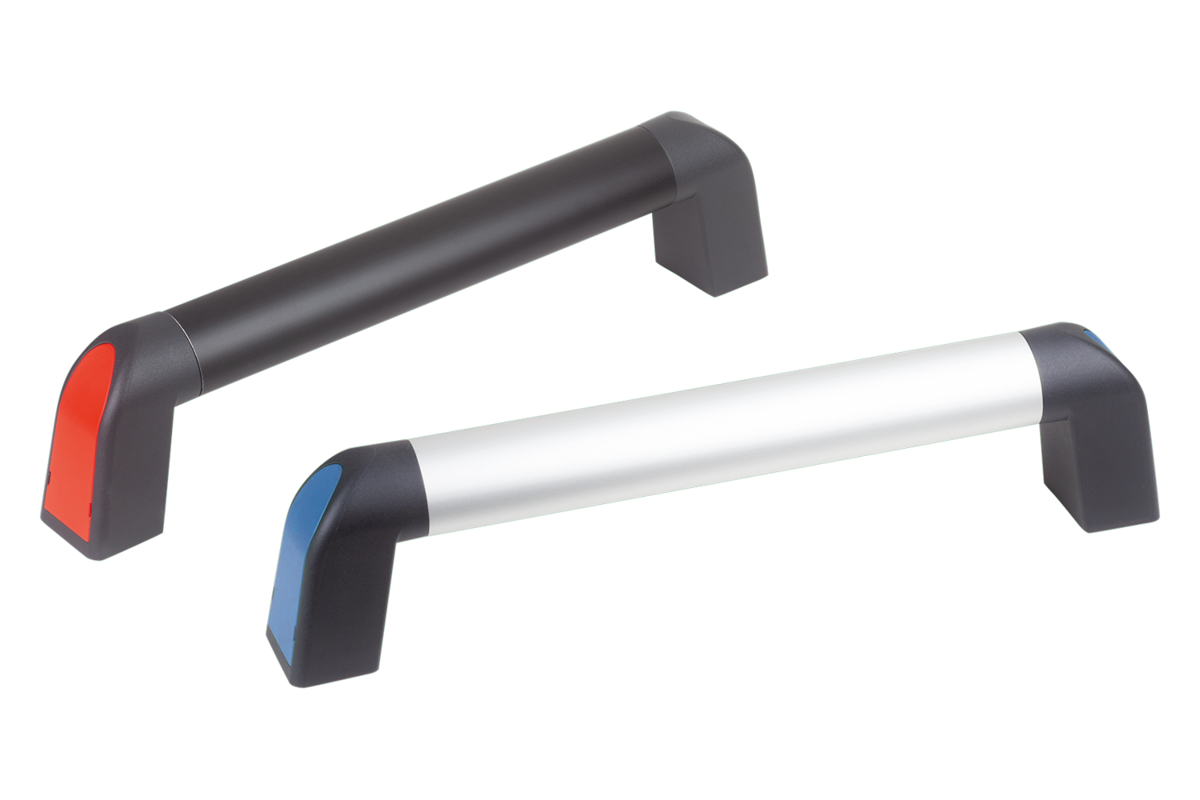

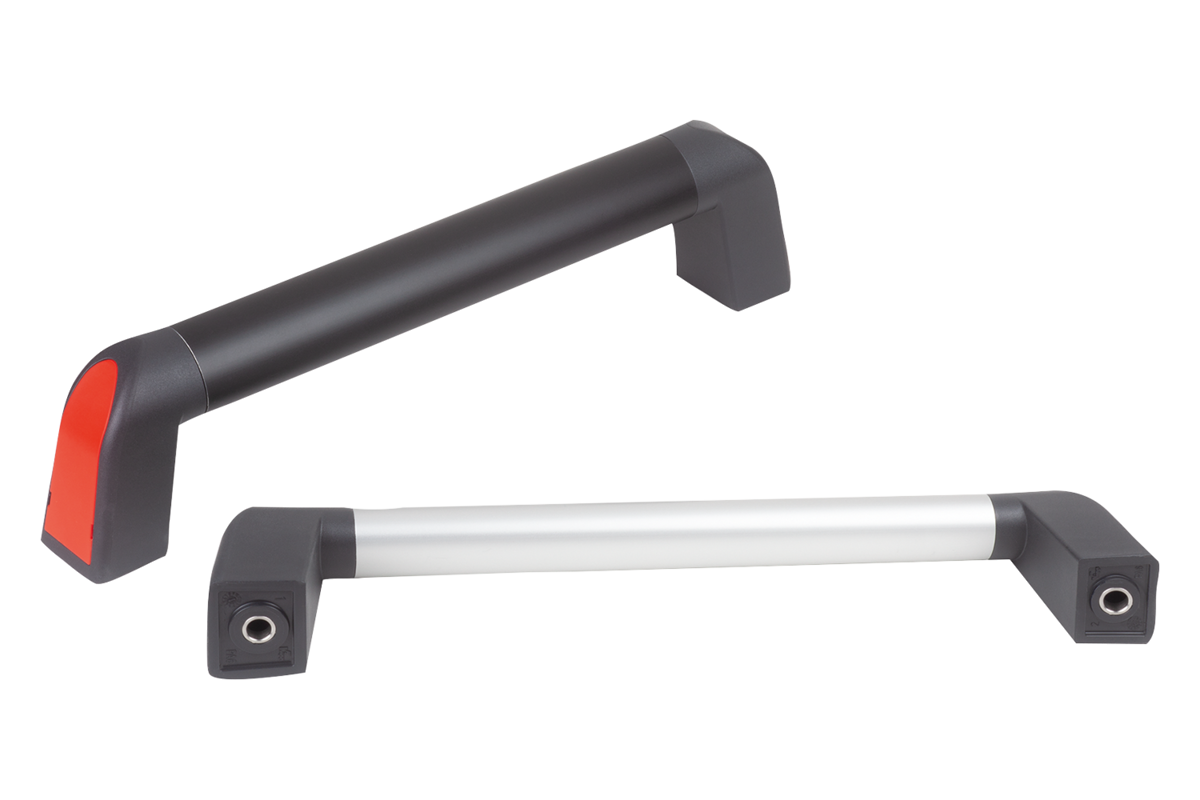

The newly designed Bighand tubular handle with its ergonomic oval shape and selected tube size provides a secure and comfortable grip. Its timeless elegant design makes it attractive and the variable color scheme means it can be optimally adapted to its surroundings.
Material
Oval tube aluminum.
End piece thermoplastic polyamide.
End cap thermoplastic polyamide.
Adapter bushing stainless steel.
End piece thermoplastic polyamide.
End cap thermoplastic polyamide.
Adapter bushing stainless steel.
Version
Oval tube black gray powder-coated (glossy), black anodized (matt) or natural tone anodized (matt).
End piece black gray RAL 7021.
End cap black gray RAL7021, pure orange RAL 2004, rape yellow RAL 1021, traffic red RAL 3020, signal green RAL 6032 or traffic blue RAL 5017.
End piece black gray RAL 7021.
End cap black gray RAL7021, pure orange RAL 2004, rape yellow RAL 1021, traffic red RAL 3020, signal green RAL 6032 or traffic blue RAL 5017.
Note
Fastening materials are not supplied.
Cap screws with thread lock are recommended for a secure and permanent hold.
Cap screws with thread lock are recommended for a secure and permanent hold.
Temperature range
Permanent temperature max. 100 °C.
Short time use up to 180 °C.
Short time use up to 180 °C.
Assembly

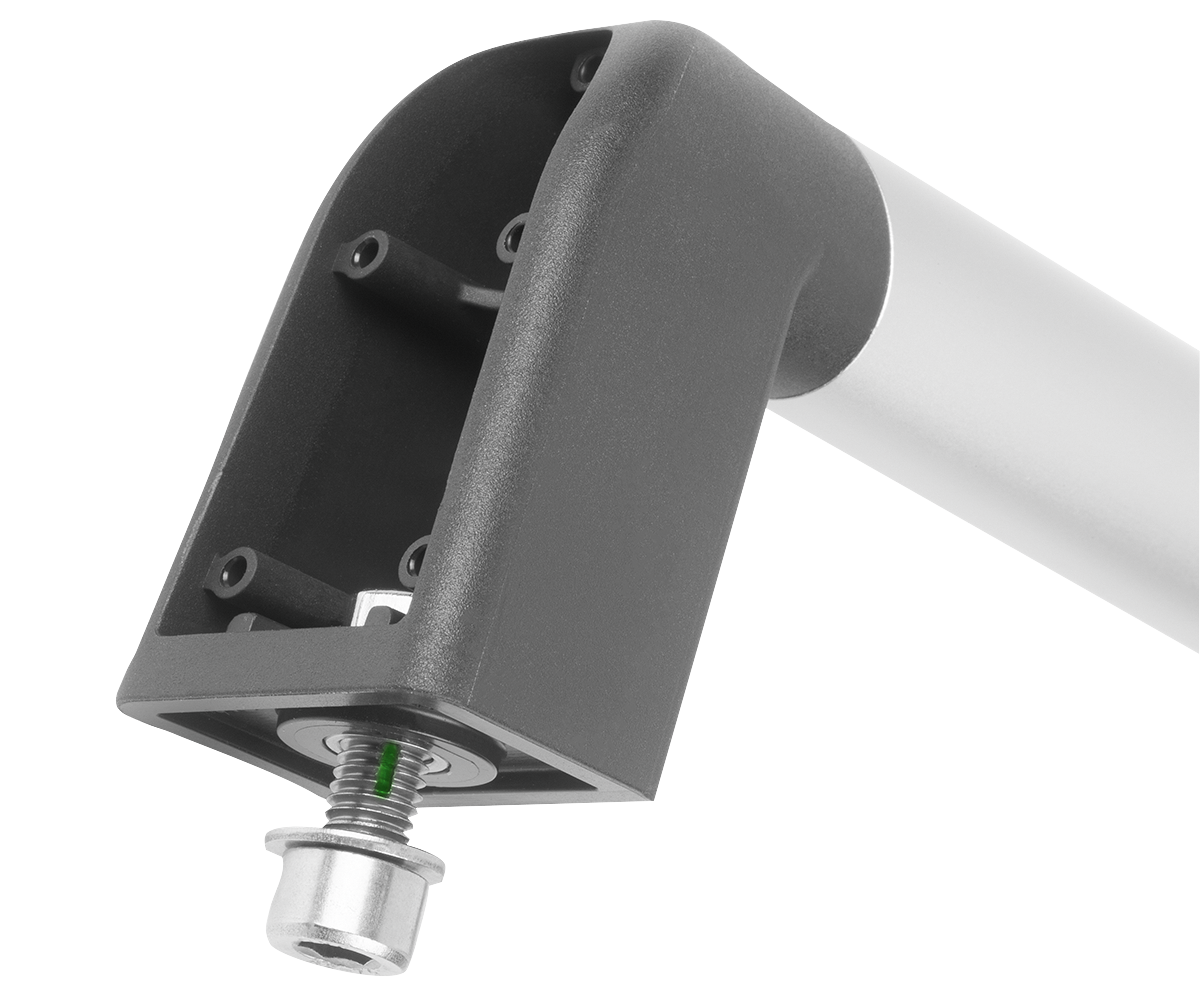

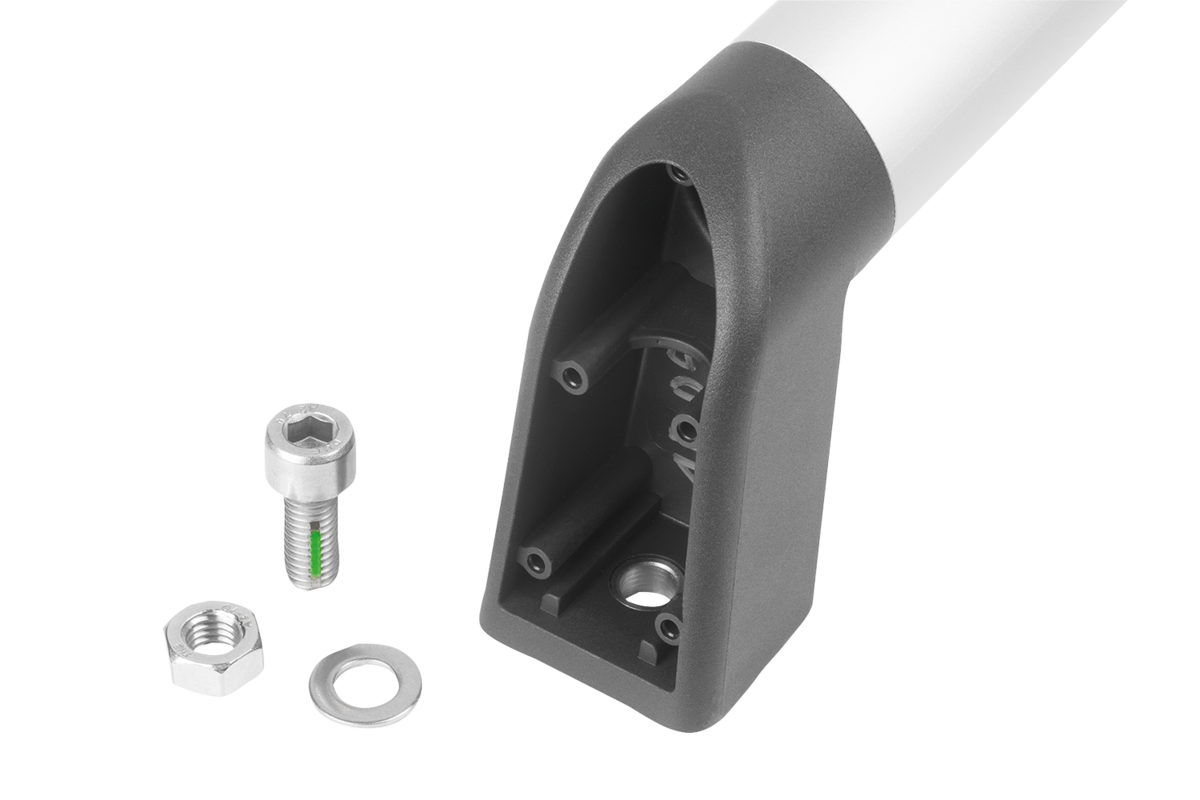

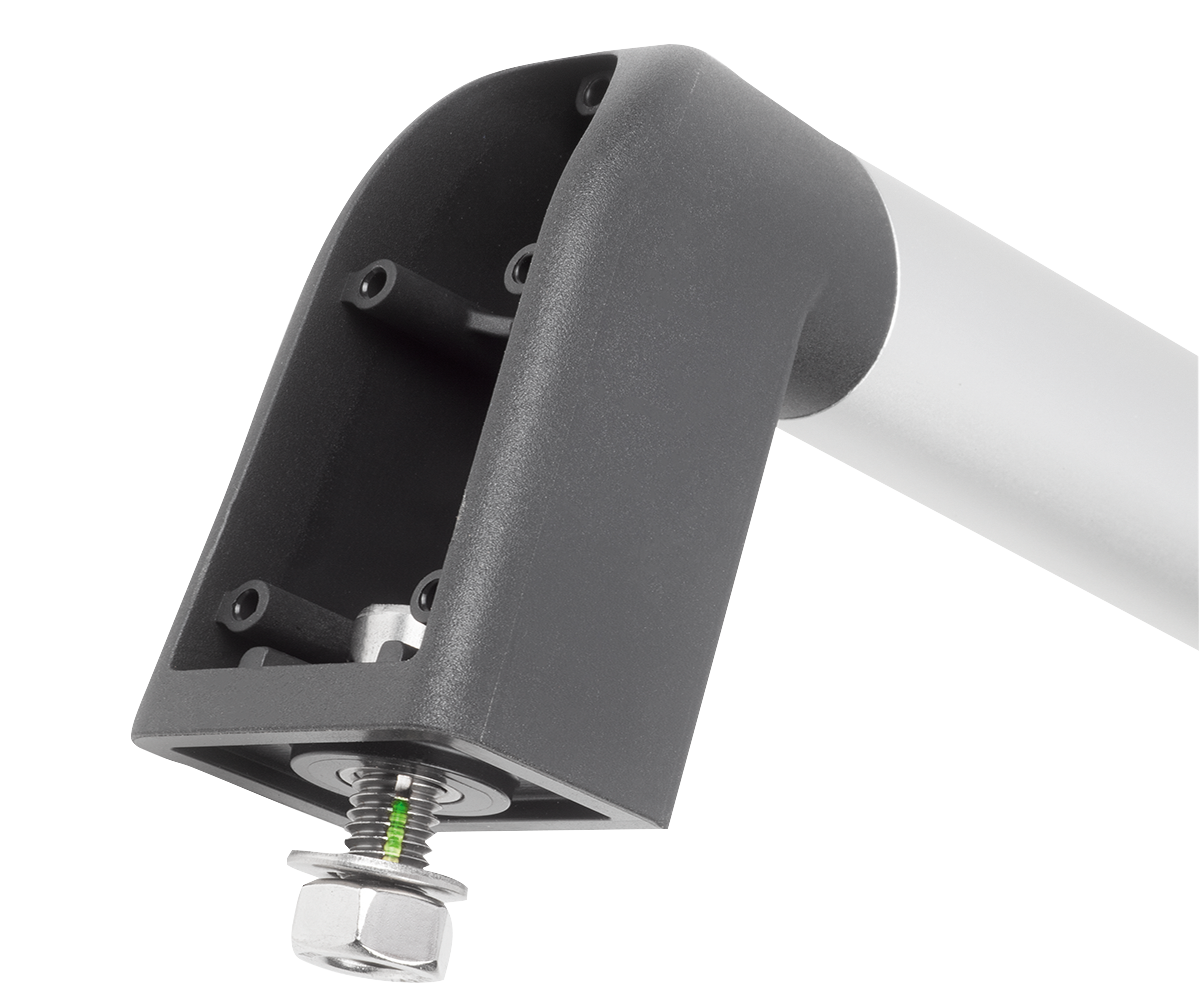

The end pieces are designed so that the tubular handle can be fastened either from the front or rear. DIN M8 cap screws or hex head screws are provided for this purpose. After mounting, the end caps can be pressed in by hand. Slots are provided on both sides of the end caps so that they can be removed with a screwdriver without damaging them.
On request
Special lengths “A”.
Accessory
K0869 Socket head screws DIN EN ISO 4762 with thread lock
K0869 Socket head screw DIN EN ISO 4762 enhanced
K0871 Hex head screws DIN 933 / DIN EN ISO 4017
K1145 Hex nuts 934 / DIN EN ISO 4032 / DIN EN 24032
K0868 Washers DIN 125 / DIN EN ISO 7089 style A
K0869 Socket head screw DIN EN ISO 4762 enhanced
K0871 Hex head screws DIN 933 / DIN EN ISO 4017
K1145 Hex nuts 934 / DIN EN ISO 4032 / DIN EN 24032
K0868 Washers DIN 125 / DIN EN ISO 7089 style A
