Material
Grip legs PA6 plastic.
Grip tube PVC plastic.
Grip tube PVC plastic.
Version
Grip legs fine textured, black.
Grip tube turned, black.
Grip tube turned, black.
Show more
Show less

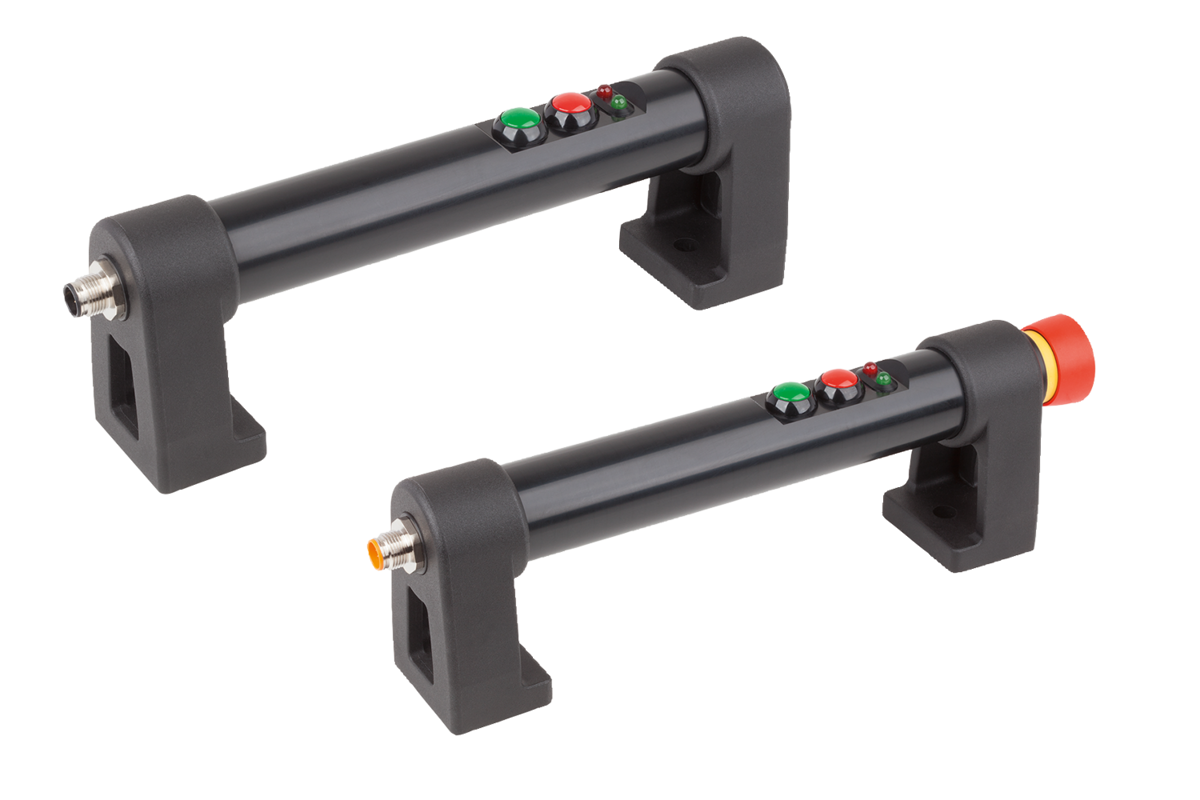

Tubular handles, plastic, with electronic switch function and two push buttons, without emergency stop
from
$692.43
as low as | plus sales tax
plus shipping and handling
Tubular handles, plastic, with electronic switch function and two push buttons, with emergency stop
from
$850.13
as low as | plus sales tax
plus shipping and handling
Description
Material
Grip legs PA6 plastic.
Grip tube PVC plastic.
Grip tube PVC plastic.
Version
Grip legs fine textured, black.
Grip tube turned, black.
Grip tube turned, black.
Note
style A:
Push button 1 (changer)
Push button 2 (closer)
2 LED'S
Plug 8 pin
style B:
Emergency stop (2 opener)
Push button 1 (changer)
Push button 2 (closer)
2 LED'S
Plug 12 pin
Plug mounted in the grip leg from the lower tube axis.
Connector (K1498) with 10 m cable available as accessory. Please order separately.
Rating: IP65 when connector is screwed on.
Optically matching tubular handle without electronic switch function (K1528) available.
Push button 1 (changer)
Push button 2 (closer)
2 LED'S
Plug 8 pin
style B:
Emergency stop (2 opener)
Push button 1 (changer)
Push button 2 (closer)
2 LED'S
Plug 12 pin
Plug mounted in the grip leg from the lower tube axis.
Connector (K1498) with 10 m cable available as accessory. Please order separately.
Rating: IP65 when connector is screwed on.
Optically matching tubular handle without electronic switch function (K1528) available.
Assembly
From the front.
Drawing reference

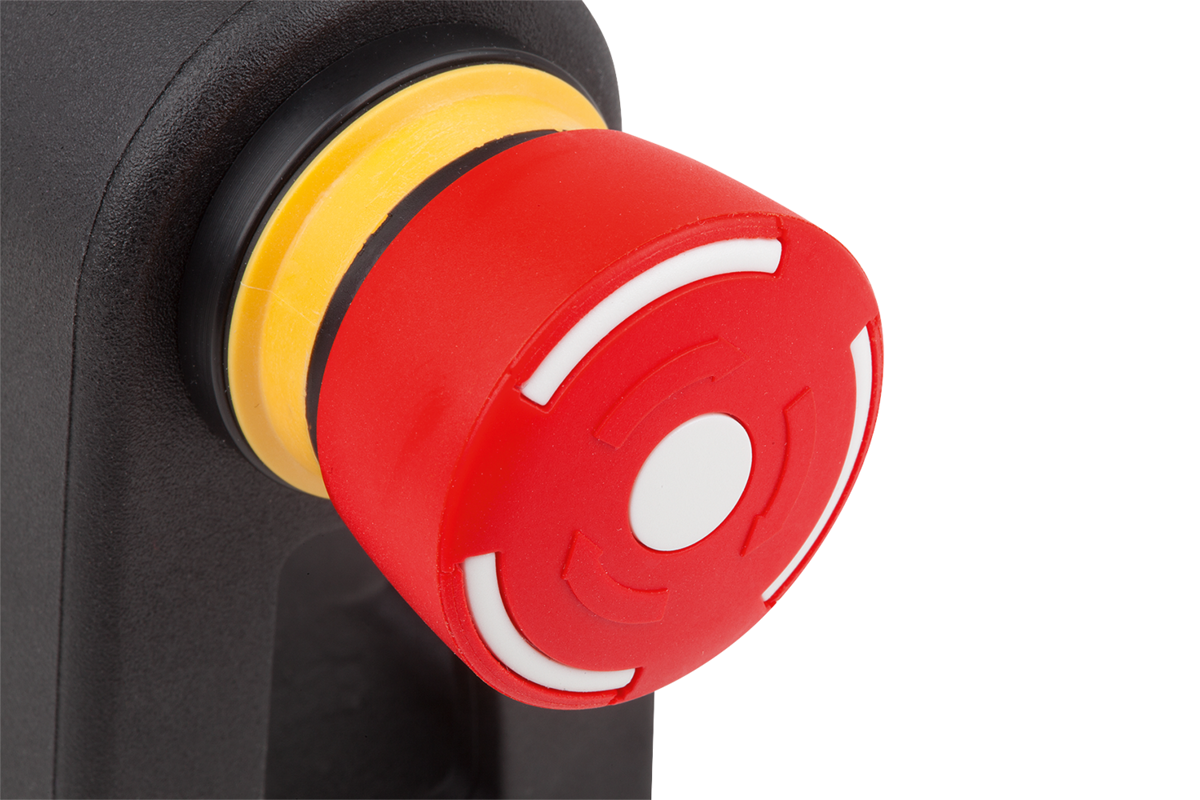

1) Emergency stop
2) Red LED
3) Green LED

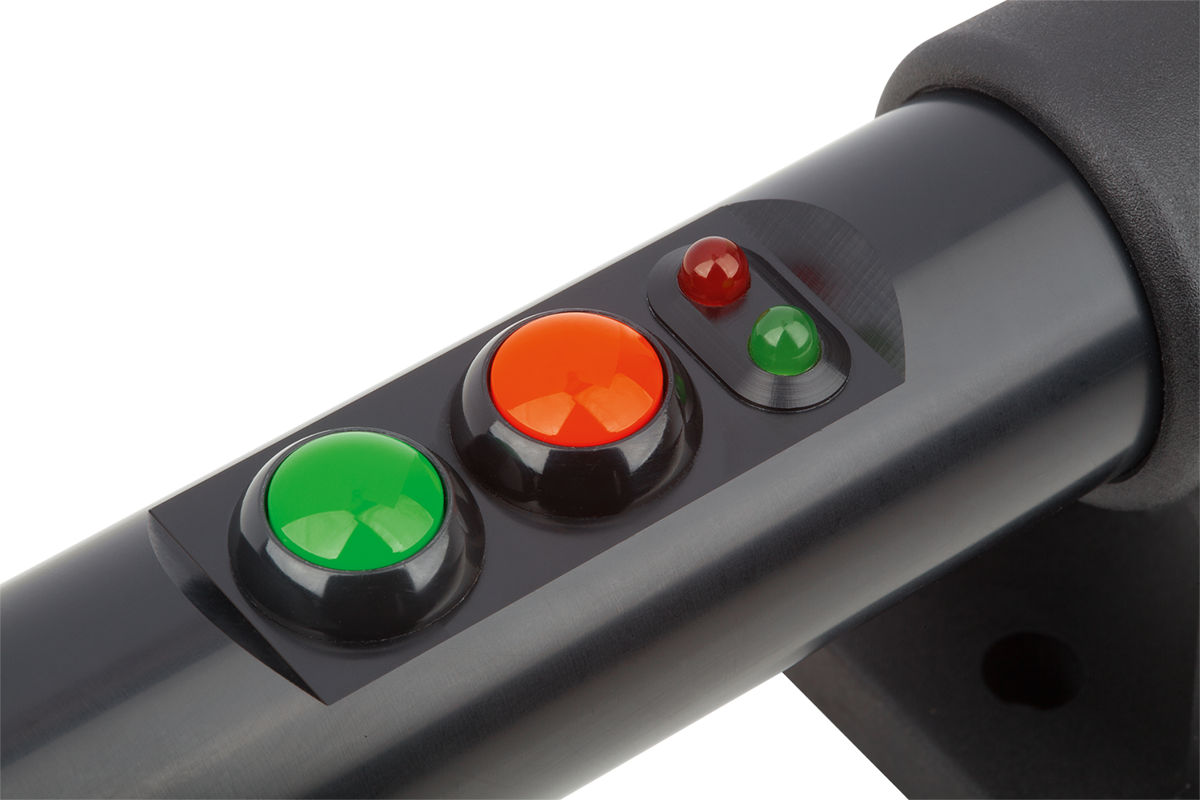

4) Push button 1
5) Push button 2

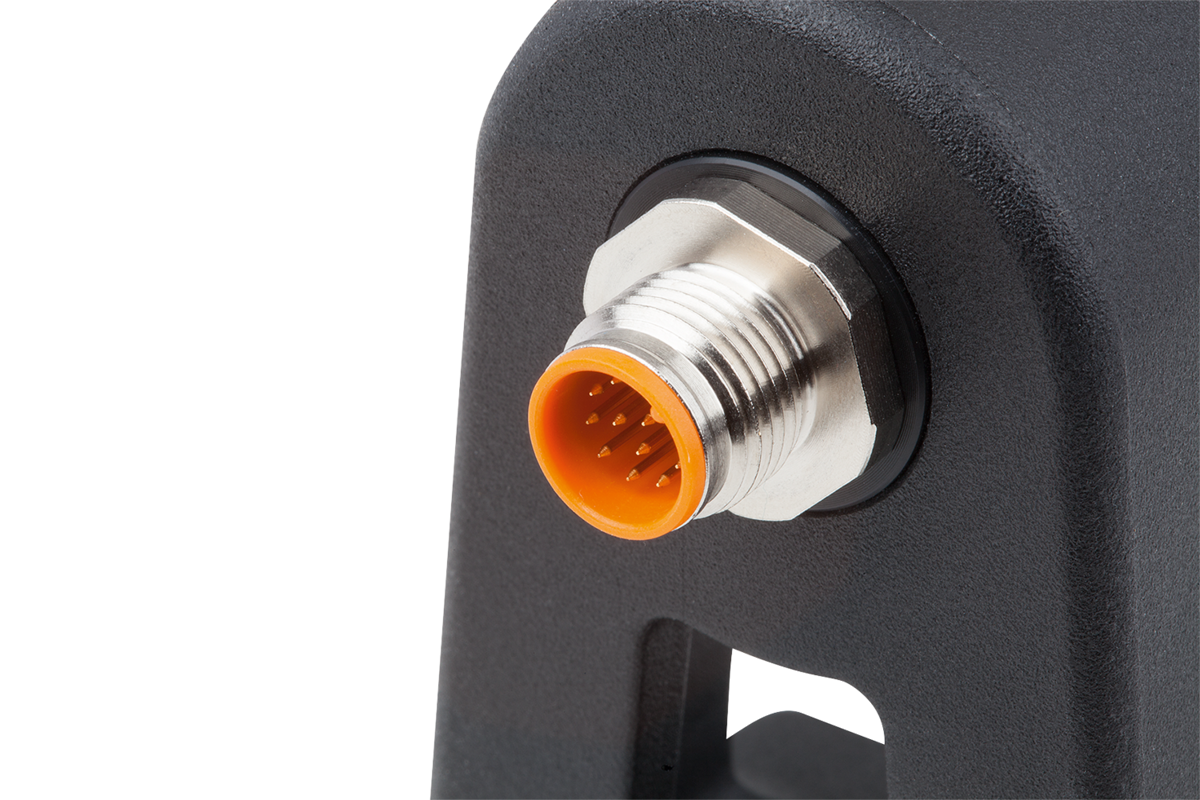

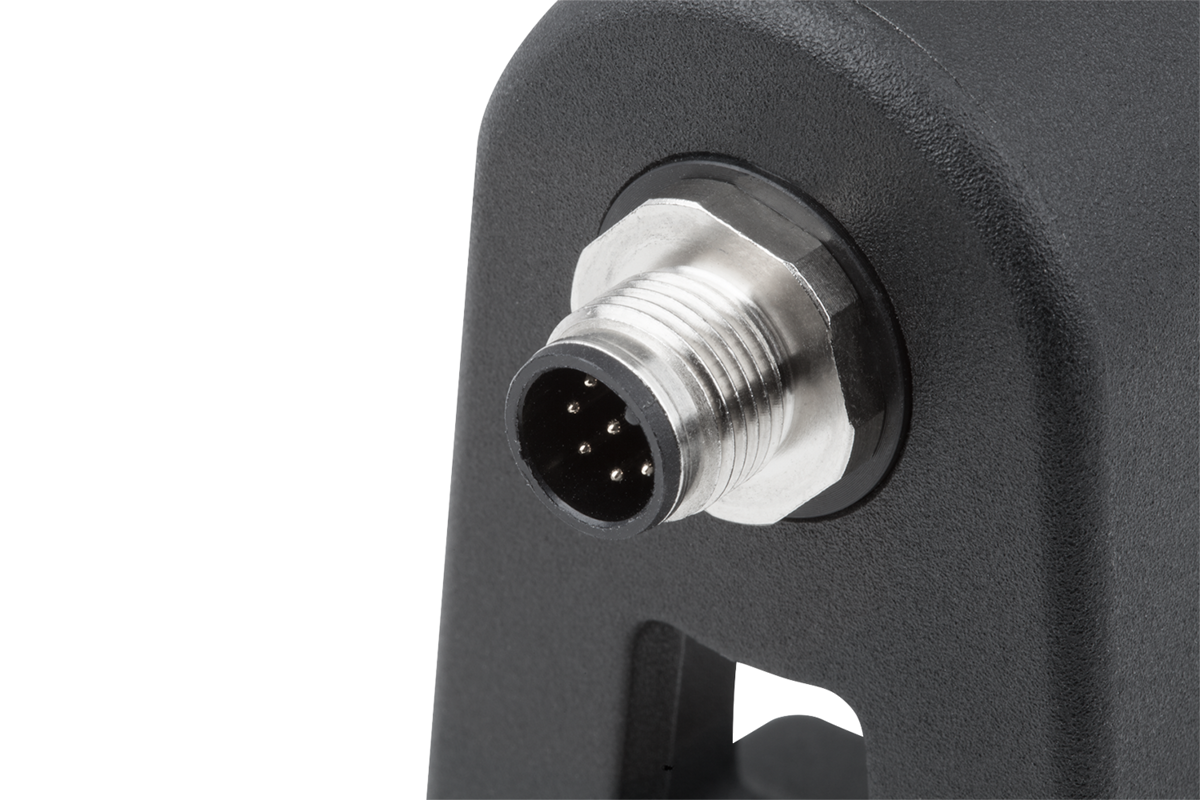

6) Connector, M12x1
2) Red LED
3) Green LED
4) Push button 1
5) Push button 2
6) Connector, M12x1
