Material

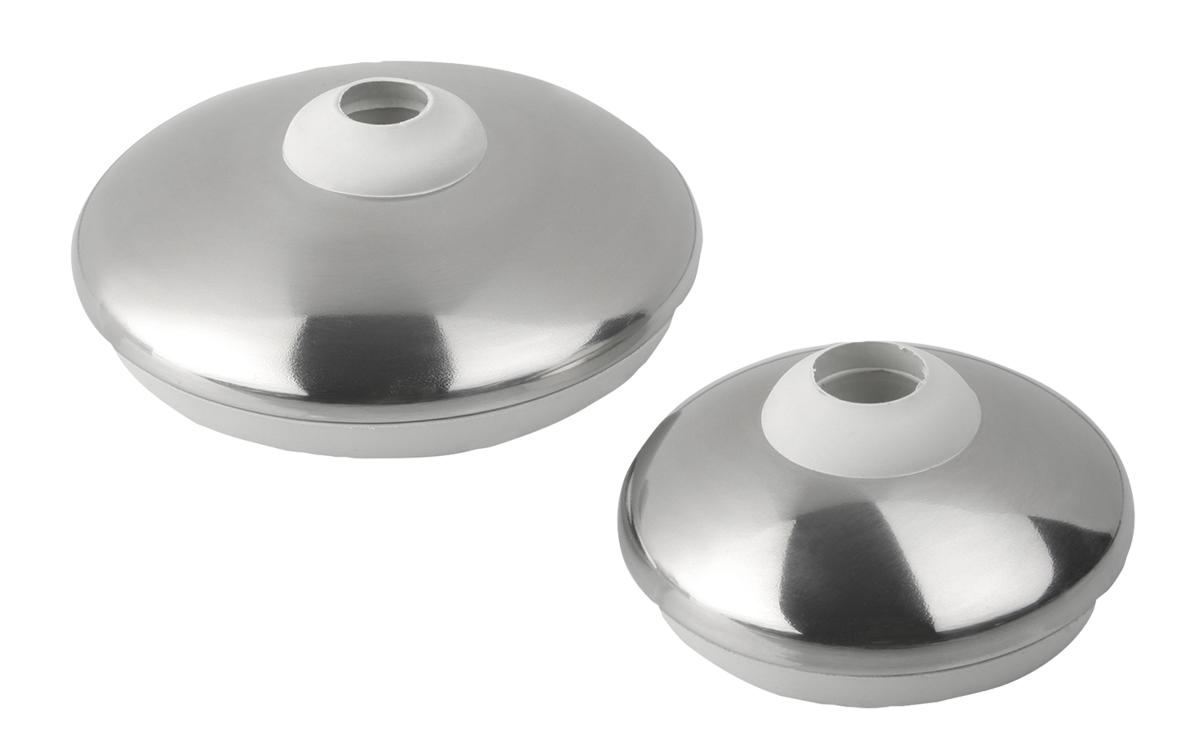

Plates, stainless steel 1.4301.
Core, thermoplastic PA.
Rubber support TPE.
Core, thermoplastic PA.
Rubber support TPE.
Version
Plate bright.
Rubber support light gray with sealing lip, hardness 70 Shore A.
Temp. range -20°C to +100°C.
Rubber support light gray with sealing lip, hardness 70 Shore A.
Temp. range -20°C to +100°C.
Show more
Show less
Description
Material
Plates, stainless steel 1.4301.
Core, thermoplastic PA.
Rubber support TPE.
Core, thermoplastic PA.
Rubber support TPE.
Version
Plate bright.
Rubber support light gray with sealing lip, hardness 70 Shore A.
Temp. range -20°C to +100°C.
Rubber support light gray with sealing lip, hardness 70 Shore A.
Temp. range -20°C to +100°C.
Note
The rubber support is joined with the stainless steel plate and the PA core by injection moulding. The rubber support is resistant to oil and water (up to 60 °C). In addition, it is furnished with antibacterial and antimicrobial protection and is thus outstandingly suited for sectors in the food industry.

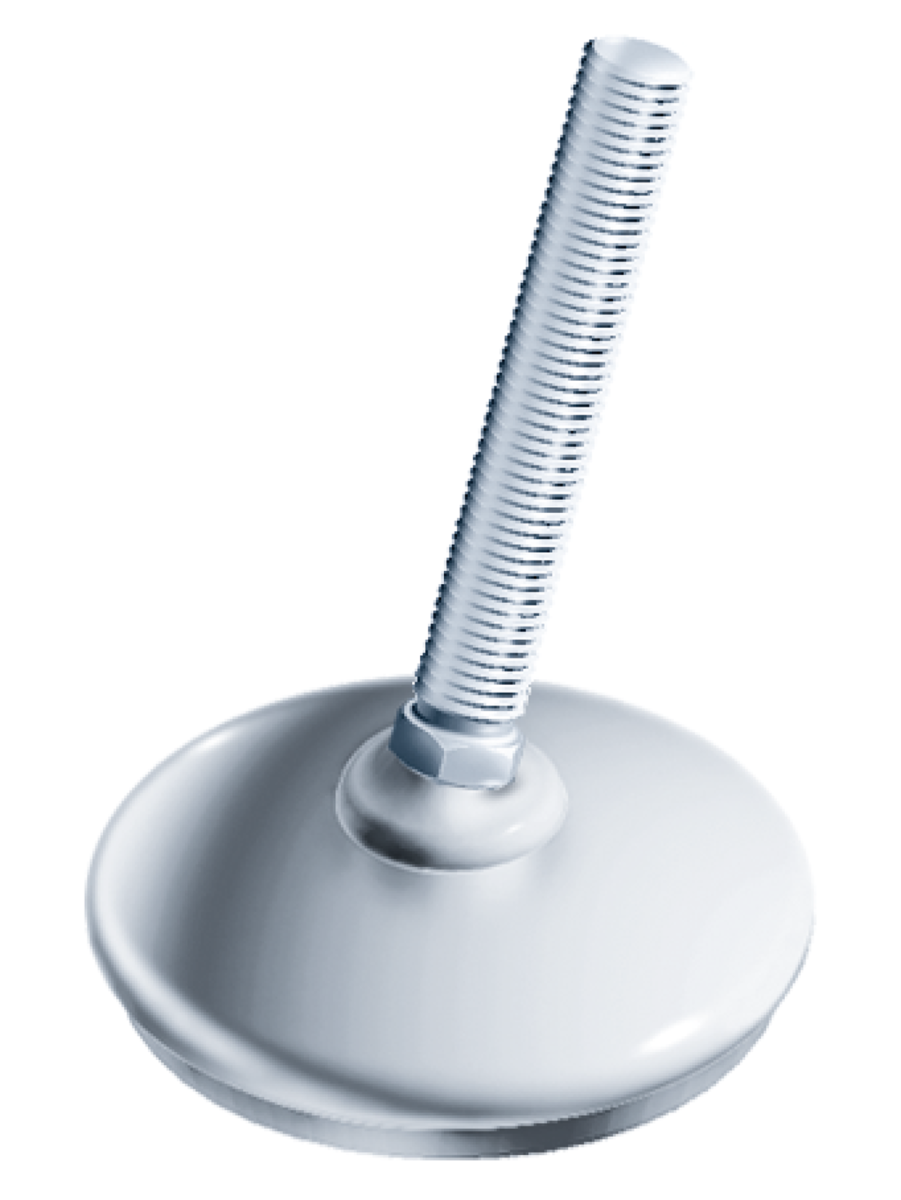

Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint.
For matching threaded spindles see K0421.
For matching ball joints see K0422.
Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint.
For matching threaded spindles see K0421.
For matching ball joints see K0422.
Drawing reference
1) PA-core
2) rubber base
2) rubber base
