Axial joints similar to DIN 71802

K0715

Axial joints similar to DIN 71802

Products
- Joints
  - Axial joints similar to DIN 71802

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.On request:Axial joints with greater extraction force and left-hand thread available.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0715 Axial joints similar to DIN 71802

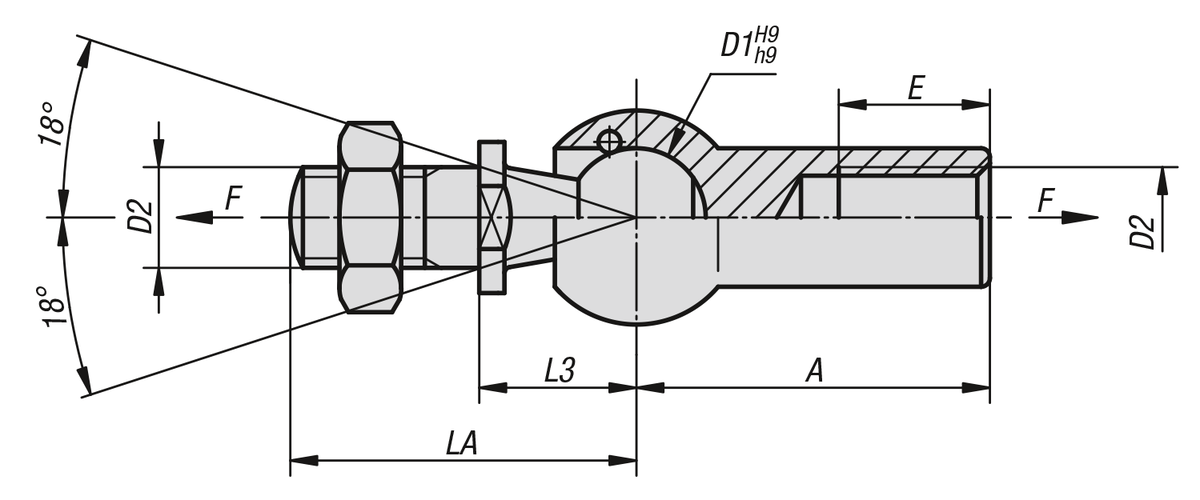

Drawings

Axial joints similar to DIN 71802

Item selection/filter

Item No.	Main material	D1	D2	A	LA	L3	E	Extraction force F N	CAD	Acc.	Price	Order
K0715.08	steel	8	M5	22	19,2	9	10,2	30			9.25 $ (USD)
K0715.10	steel	10	M6	25	23,5	11	11,5	40			9.52 $ (USD)
K0715.13	steel	13	M8	30	29,5	13	14	60			14.26 $ (USD)
K0715.16	steel	16	M10	35	36	16	15,5	80			18.16 $ (USD)
K0715.19	steel	19	M14x1,5	45	48	20	21,5	100			25.55 $ (USD)
K0715.108	stainless steel	8	M5	22	19,2	9	10,2	30			29.94 $ (USD)
K0715.110	stainless steel	10	M6	25	23,5	11	11,5	40			30.98 $ (USD)
K0715.113	stainless steel	13	M8	30	29,5	13	14	60			42.70 $ (USD)
K0715.116	stainless steel	16	M10	35	36	16	15,5	80			58.93 $ (USD)
